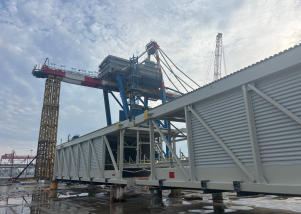

Belt conveyor gallery bridge

Product Advantages

The lightweight truss supports long single‑span length from 30 m to 60 m;
Segmented modular sections are connected by bolts on‑site and reduce field‑welding workload;
Weather‑resistant coating and thickened galvanized treatment are available for coastal anti‑salt‑fog conditions;
Built‑in maintenance walkway facilitates routine upkeep for rollers and belts.

Call Us 0086-22-25214991-818

Email Us dongliyan@tzme.net

Hot Products

Product Introduction

Structural Composition

The main body adopts truss‑type steel structure with hot‑dip galvanized or anti‑corrosion painted finish, including top chords, bottom chords, diagonal braces and transverse stiffeners.

Internal attachments contain belt brackets, roller supports, maintenance walkways, safety guardrails and cable trays.

External components consist of rain‑proof enclosure steel plates, daylight openings, expansion joints and bearing bases.

Manufacturing Process

Steel blanking, CNC cutting, assembly and welding, non‑destructive weld inspection, sand‑blasting rust removal, multi‑layer anti‑corrosion spraying, pre‑assembly inspection and segmented packaging for delivery.

Application Scenarios

Ore transfer at ports, sand‑aggregate production lines, coal‑transport corridors for thermal‑power plants and raw‑material conveying in cement factories.

It realizes closed‑type outdoor material transportation to prevent spillage, dust pollution and shield conveyor belts from harsh weather.
